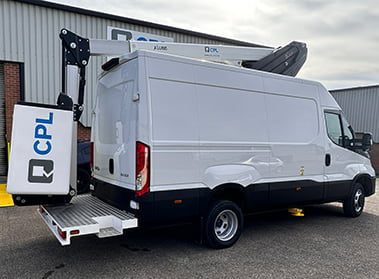

14,6m Van Mounted Cherry Picker K42P

The K42P from Klubb is a telescopic aerial platform that allows you to reach 14.60 m working height and 2 max outreach : 7.10m with a 200 kgs working load or 8.10m with a 180 kgs working load. Considering his specific design, this telescopic work platform can be fitted to a multitude of van models. Thus the K42P can be mount on a Renault van, Iveco van or Ford van…

Contact the Team

If the CPL Team can be of any help with this product, or any others, do get in touch with us.

Our Brochures

To view all our brochures, please submit your details here to gain instant access.

Description

Technical Specification

Max. working height : 14.80 m

Max. working outreach : 8.20 m

Boom rotation : 360°

Max. working load : 200Kg

Max. platform height : 12.80 m

Outriggers : 2

Basket size : 125 x 75 x 110 cm

Chassis weight : ≤ 3.5T

Benefits

service-two-img1

Mobile Workshop

All necessary tools and equipment can be stored directly on the vehicle. This on-board storage eliminates the need for additional vehicles. It allows you to have everything you need at your fingertips, reducing downtime and improving workflow efficiency.

KL32-RENAULT-MASTER-REDIM-14

Compact Size

Van aerial platforms often have a more compact footprint compared to some larger, stand-alone platforms. This smaller size can be a significant advantage when working in tight or restricted areas where larger vehicles might have trouble maneuvering. The compact size also makes it easier to navigate through heavy city traffic or crowded job sites.

compact van aerial lift

Reduced Operational Costs

The integrated design of these platforms often means lower fuel consumption than using separate vehicles for transportation and lift operation. Additionally, having a combined vehicle and lift reduces the need for costly equipment rentals, as well as the maintenance costs associated with multiple machines

The machine has a load cell system which measures the load in the basket. This switches between a safe working load of 120Kg and 200Kg. The 120Kg working load offers 8.1m outreach and the 200Kg working load offers 7.1m outreach.

They have A frame hydraulic stabilisers and fully electric controls fitted to the basket. With a safe working load of 200Kg the K42p van mounts can hold up to 2 people with tools.

As standard we fit a plastic basket which offers 1Kv protection. The plastic structure guarantees more payload and reduces in life costs by 80% compared to Fibreglass.

Cables and hoses on these van mounts are enclosed within the telescopic articulated boom to provide protection. Locking valves are installed to prevent any uncontrolled movement of the boom in the event of a pipe failure. If the engine or main pump fails, functions are controlled by an independent electro-hydraulic pump.

We offer a multitude of optional extras to suit any project. These include; Front, rear and cab beacons, work lights, reversing cameras, internal electric sockets, company livery and chapter 8 markings.
These conversion are a perfect partner for Telecoms, Utilities, Highways and Street lighting, Local councils, Rental firms, Fire and Safety and Signage sectors.

Standard

Engine start and stop from basket

Independent emergency electric pump with all the features in the basket for maximum security

Proportional controls

Secure access to the working platform

Hoses and cables are inside the boom structure for maximum protection

Options

Signalling devices

Custom fitting out of vehicles

Chapter 8 Markings

Reverse Camera

Leg Operations from the cab

Additional information

Condition

Bespoke

Working height

13m to 15m

Vehicle

Full van

Engine

Diesel
